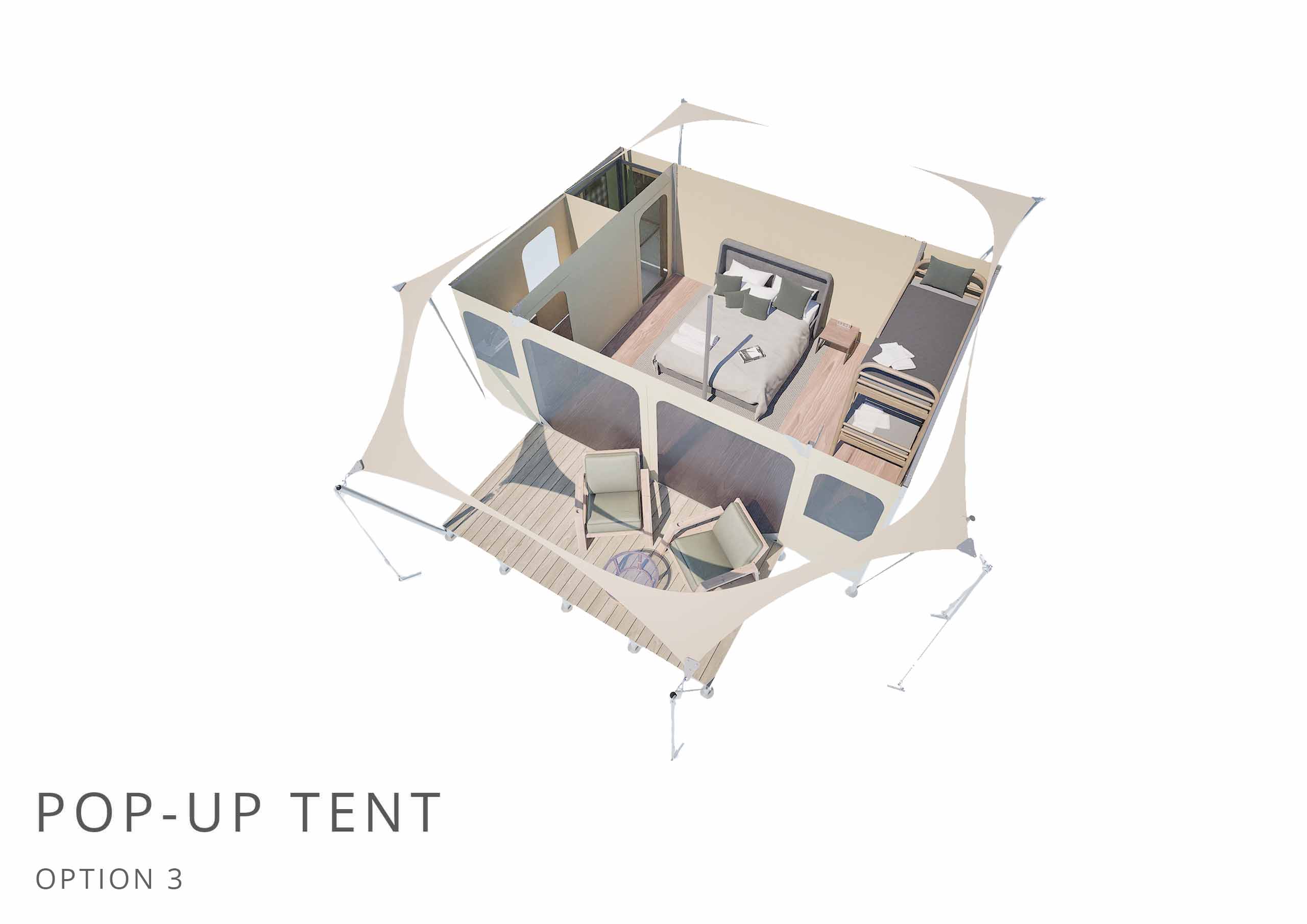

The Pop Up Tent 3

$23,780.00

Add vinyl flooring for $1140
Simple and safe payment.

Specifications

Internal Area 5.4m x 3.6m 19.5 sqm
Deck Area 1.8m x 3.6m 6.5 sqm
Overall Roof Area 38.7 sqm
Height (Internal floor to enclosure) 2.15m
Height (Internal floor to wall) 2.3m
Height (Internal floor to ceiling) 2.9m
Height (Opprox Overall) 4.4m
Imperial Size 17.7ft x 11.8ft 216sqf
Decking area 6ft x 12 ft 72sqf

Inclusions

Product Inclusions:

  • Sub floor hot dipped galvanised steel structure as transport Box
  • Ply wood internal flooring WPC externally
  • 22 adjustable feet
  • Galvanised structural steel frame and poles
  • PVC roofing ropes, rigging and ratchet straps

Service Inclusions:

  • Warranties
  • Installation Guide
  • Shipping support to your choice of port (additional charges)
  • Local transport from port to site (To be advised as per country & project specifications)

Please Note:

  • The pop-up is rated to 100km/hr winds. When winds are expected to be higher than this, it is advised to dismantle the pop-up as warranty is removed.
  • Double or Queen Bed will fit. Allow 2200 mm clear from back wall to column.
  • The site chosen for install must be a level site. Each footing at the base has 100mm of adjustment in the event of a slightly unlevel site.
  • We supply ply wood flooring as standard, however you may choose to vinyl, tile or deck the floor.
  • Our lead time is 90 days to manufacture | 4 weeks shipping | 1 day to install
  • The maintenance required for Pop Up Tents is minimal. Store bought products can be used to clean any marks.
  • We offer replacement canvas panels, decking and roof flys for when there is a need. Just remove the current panel or part and replace with a new panel.
  • Pop Up Tents can be heated or cooled with split system air conditioning.

Exclusions

Service Exclusions:

  • Import duties & clearance
  • Connections to power, water and other infrastructural needs
  • Land & Access- Site preparation as per our suggestions
  • Local Labour- Eco Structures can provide construction managers
  • Furniture, cabinetry etc.

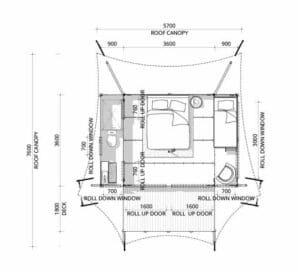

Floor Plan

Warranty

Floor Joist and Bearers- Blue Scope Lysaght 200C
10 Year Limited Warranty
20 Year Estimated Life

Hot Dipped Galvanized Structural Steel Frame
15 Year Limited Warranty
25-50 Year Estimated Life

RT12 Canvas
5 Year Limited Warranty
10-12 Year Estimated Life

Flooring WPC External Board
5 Year Limited Warranty
10 Year Estimated Life
